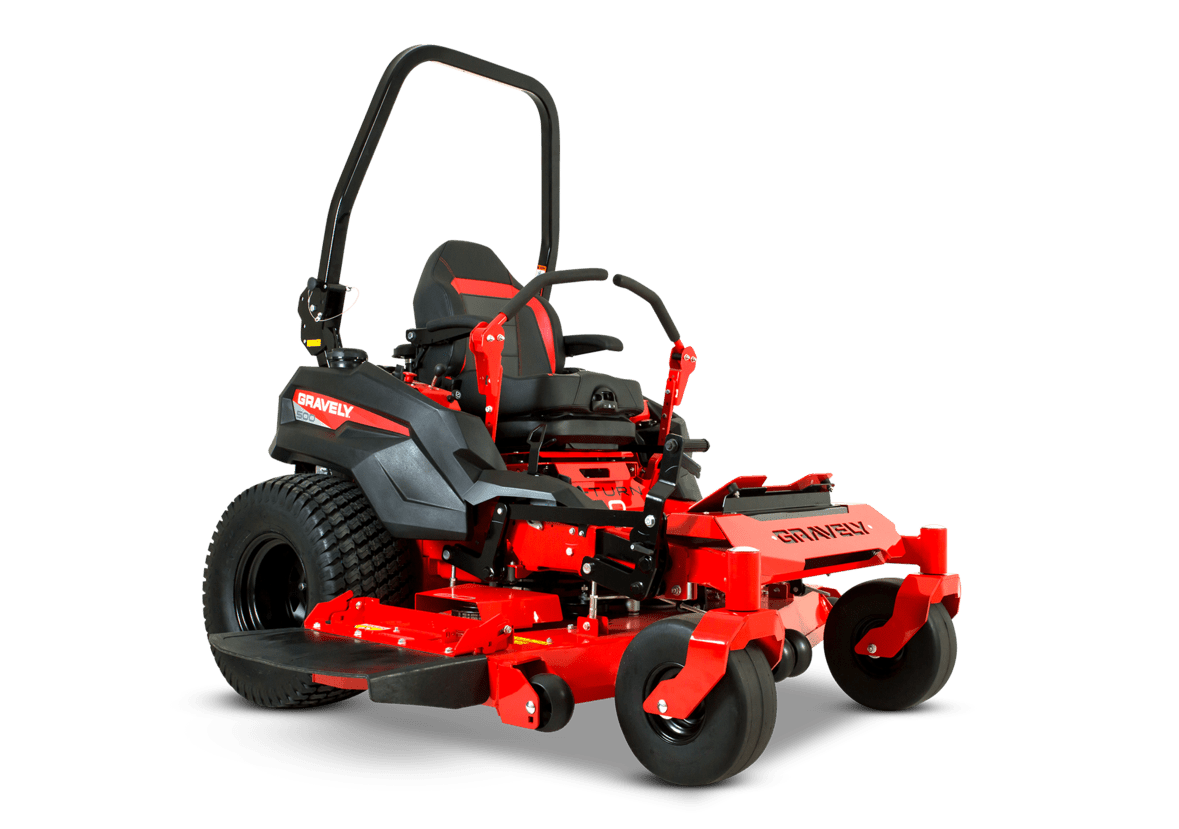

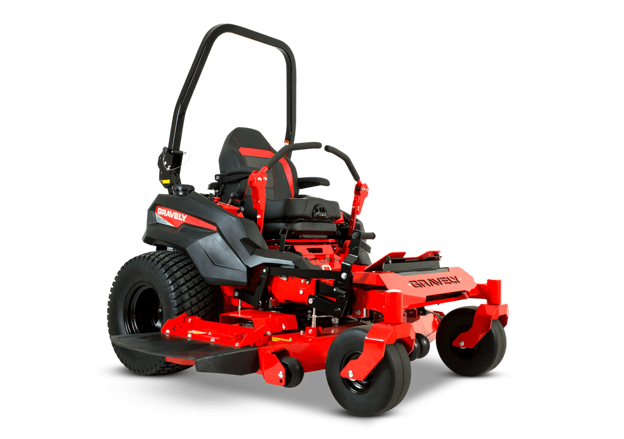

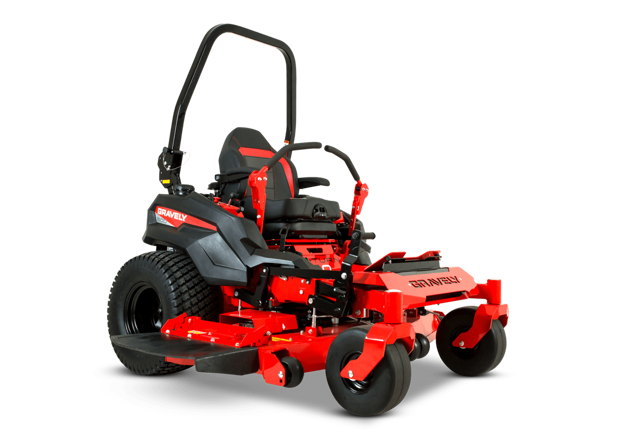

Gravely Pro-Turn 560 Zero-Turn Mower

Price: $20,499.00

Old price: $24,499.00

This is the Pro-Turn® 500. A commercial-grade mower for professionals who want rugged durability without sacrificing features and performance. Better seating, better tires, better mowing deck, and a better transmission make the Pro-Turn 500 the better choice.

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Overview
Reviews
Contact Us

Specifications

Warranty Information

Domestic Warranty

5 Years / 1500 Hour Domestic Warranty

Commercial Warranty

5 Years / 1500 Hour Commercial Warranty

Hire/Rental Warranty

90 Day Hire / Rental Warranty

Miscellaneous

Blade(s)

3 x Bar blades

Dimension Specs

Dry Weight

674.4 kg

Height

1930 mm ROPS up, 1214 mm ROPS down

Width

1600 mm With chute up

Overall Length

2133 mm

Zero Turn Mower Specs

Ground Speed - Forward

Up To 24.1 km/h

Brakes

Hand brake

Seat

High back comfort with suspension and padded armrests

Construction

STEEL Tubular frame welded

ROPS

Foldable ROPS Standard

Controls

Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand Park brakes

Cup Holder

Yes

Deck System

X-Factor® 3 Fabricated

Deck Lift

Foot-operated

Deck Construction

Fabricated 7 Gauge w' 1/4" Spindle Reinforcement

Blade Tip Speed

18000 FPM

Blade Drive

V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life

Spindles

Forged Aluminium with sealed ball bearings

Drive System

Parker HTG 16cc Dual Hydrostatic Transmission

Discharge Chute

High density, rubberised

Steering

Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse, and turns are all controlled with hand-operated controls.

Engine and Fuel Specs

Engine

Kawasaki FX921V

Type

Air cooled, 90-degree V-twin, normally aspirated petrol engine

Engine (cc)

999 cc

Horsepower

31 hp

Cooling

Air cooled flywheel fan

Fuel

Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)

Fuel Filter

Replaceable, automotive-type

Oil Filter

Spin-on engine oil filter / Total oil capacity 1.9 litres with filter

Air Filter

Multi-Stage remote canister heavy duty air filter system

Fuel Capacity

47.3 L

Governor

Mechanical

Safety Features

Operator presence system connected to clutch, seat, and park brakes

Hydrostatic Drive System Specs

Drive Cooling

Transmission mounted fans

Cutting Dimensions

Cutting Widths

60" (1524 mm) cut side discharge.

Cutting Height(s)

25 mm – 139 mm
